- (1) AMD EPYC™ 7551P 2.00GHz/2.55GHz, 32C/64T, 64M Cache (180W) DDR4-2666
- 128GB (4 x 32GB) RDIMM, 2666MT/s, Dual Rank
- 2 x 1.92TB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive
- PERC H740P RAID Controller, 8Gb NV Cache, Minicard
- On-Board Broadcom 5720 Dual Port 1Gb LOM
- Broadcom 57416 Dual Port 10 GbE SFP+ Network LOM Mezz Card
- iDRAC9,Enterprise
- 8 x 2.5” Hot-plug SAS/SATA (HDD/SSD/NVMe SSD)
- Slim 8X DVD+/-RW Internal Drive
- Dual, Hot Plug, Redundant Power Supply (1+1), 550W
- NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, Power Cord
- Rack (1U), ReadyRails™ Sliding Rails With Cable Management Arm
- Warranty : 3 Year ProSupport and NBD On-site Service
Processor
One AMD EPYC™ Processor with up to 32 cores
One full AMD SP3 processor stack TDP with up to 180W and up to 32 cores
Operating System
Microsoft® Windows Server® 2012 R2
Microsoft® Windows Server® 2016
Red Hat® Enterprise Linux 7.4
SUSE Linux SLES 15
Ubuntu Server 18.04.1
VMware® vSphere 2016 U1 (ESXi 6.5 U1)
Bezel
Optional LCD bezel or security bezel
Dimensions & Weight
Height
42.8mm (1.7“)
Width
434.0mm (17.1")
Depth
657.2mm (25.9")
Weight
16.91kg (37.28lbs)
Memory*
DIMM Speed
Up to 2666MT/s
Memory Type
RDIMM
LRDIMM
Memory Module Slots
16 DDR4 DIMM slots
Maximum RAM
RDIMM 512G
LRDIMM 1TB
Power Supplies
450W Bronze
550W Platinum
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Regulatory
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Storage Controllers
Internal Controllers
PERC H330, H730p, H740p, HBA330
External Controllers (RAID)
H840, 12Gbps PERC9, 10 series mini PERC x8 slot
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SATA SSDs
Internal Dual SD Module
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
Storage
Front Bays
Up to 10 x 2.5" SAS/SATA/NVME
Up to 8 x 2.5" SAS/SATA
Up to 4 x 3.5" SAS/SATA HDD
Management
Embedded / At-the-Server
iDRAC9 with Lifecycle Controller
iDRAC Direct
iDRAC RESTful API with Redfish
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Integrations
BMC Truesight
Microsoft® System Center
VMware® vCenter™
OpenManage Connections
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Slots
PCIe
2 x Gen3 slots; 2 x16
Form Factor

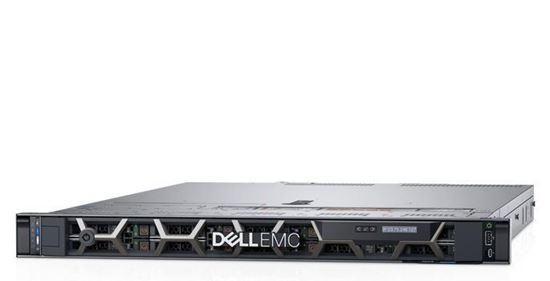

1U Rack Server
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Ports
Network Options
2 x 1GE
2 x 10GE
2 x 10GE SFP+
Front Ports
1 x Dedicated iDRAC direct micro-USB
1 x USB 2.0
1 x Video
Rear Ports
2 x 1GE
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video
Resources
PowerEdge R6415 Spec Sheet
PowerEdge Rack Servers Quick Reference Guide
PowerEdge Server Solutions Brochure
PowerEdge R6415 Technical Guide
