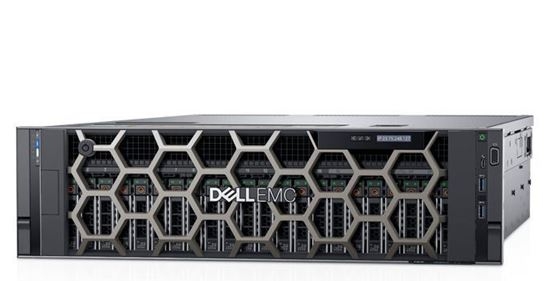

Dell PowerEdge R940 Gold 5115
- 2x Intel® Xeon® Gold 5115 2.4G, 10C/20T, 10.4GT/s, 14M Cache, Turbo, HT (85W) DDR4-2400
- 32GB (2 x 16GB) RDIMM, 2666MT/s, Dual Rank
- 2 x 960GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug
- PERC H730P RAID Controller, 12Gb/s SAS, 2Gb NV Cache, Adapter (RAID 0,1,5,6,10,50,60)
- Broadcom 57416 2 Port 10Gb Base-T + 5720 2 Port 1Gb Base-T, rNDC
- iDRAC9 Enterprise with OME Server Configuration Management
- OpenManage Integrations: Microsoft® System Center; VMware® vCenter™; BMC software (available from BMC)
- 24 x 2.5” SAS/SATA (HDD/SSD) with up to 12 NVMe PCIe SSD, max 122TB
- Dual, Hot-plug, Redundant Power Supply (1+1), 1600W, 250 Volt Power Cord
- C13 to C14, PDU Style, 12 AMP, 6.5 Feet (2m) Power Cord
- Form factor: Rack (3U)Rack (2U), ReadyRails™ Sliding Rails
- Warranty : 3 Year ProSupport and NBD On-site Service
MSP:
VNPT-0029
Call
Processor
- Up to four Intel® Xeon® Scalable processors, up to 28 cores
Operating System
- Canonical® Ubuntu® LTS Citrix® XenServer®
Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server VMware® ESXi
Memory1
- 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2666MT/s, 6TB max
Up to 12 NVDIMM, 384 GB Max
Supports registered ECC DDR4 DIMMs only
Drive Bays
- Front drive bays:
Up to 24 x 2.5” drives (up to 12 x NVMe)
Max Storage 122 TB
Dimensions
- Form factor:
Rack (3U)
Chassis depth:
777.05 mm
Data Protection
- TPM 1.2/2.0 optional Cryptographically signed firmware
Secure Boot
System Lockdown
Secure erase
Ports
- Network daughter card options:
4x 1Gb, 4x 10Gb, 2x 10Gb+2x 1Gb, or 2x 25Gb
Front ports:
Video, 2 x USB 3.0, dedicated IDRAC Direct USB
Rear ports:
Video, serial, 2 x USB 3.0, dedicated iDRAC network port
Video card:
VGA
Up to 13 x Gen3 slots, (3 x8 + 10 x16)
Chassis
- Optional LCD or Security bezel
Power
- Platinum 1100W, 1600W, 2000W, 2400W, 336-
380VDC 1100W, Gold 48VDC 1100W
Hot plug power supplies with full redundancy option 8 hot plugs fans with full redundancy
RAID Controllers
- Internal controllers:
PERC S140, H330, H730P, H740P Boot optimized Storage Subsystem
External HBAs (RAID):
H840
External HBAs (non-RAID):
12 Gbps SAS HBA
Management
- Embedded / At-the-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
OpenManage Integrations
Microsoft® System Center
VMware® vCenter™
BMC software (available from BMC)
OpenManage Connections
Nagios Core and Nagios XI
HPE Operations Manager i (OMi)
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Regulatory
